What is concrete mixer with pump?

Concrete mixer with pump is a new designed versatile machine, one stop solution for concrete mixing and pumping. It is the combination of small concrete batching plant and concrete pump. It is efficiency because it can achieve the function of mixing and pumping concrete at the same time.
In the past time, the clients wanted to buy a concrete mixer for sale to produce the concrete firstly, and then he also needed a trailer concrete pump to deliver the concrete to the buildings. There will be two machines to finish the job. It required more people for the projects.
In order to solve this problem and provide our customer with better solution. We researched and developed this concrete mixer with pump. You can finish all the work by only one machinery. It combines concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete.

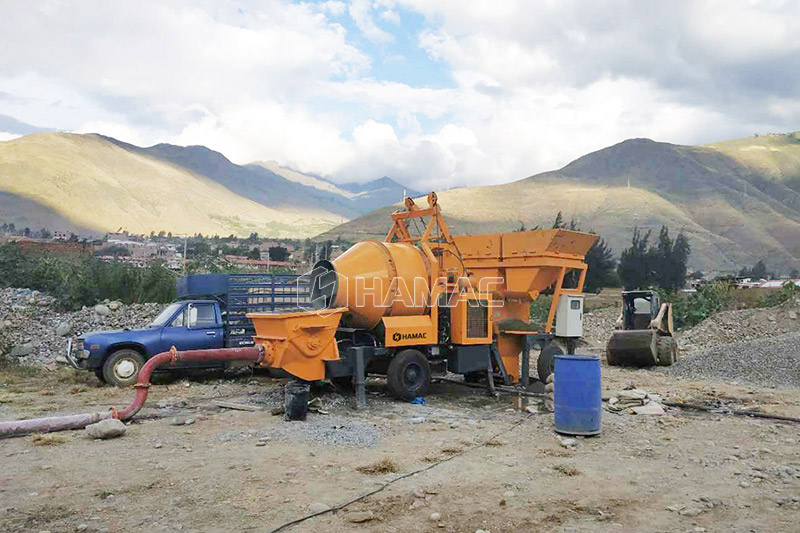

Concrete mixer with pump working  in  Kenya

How many types concrete mixer pump there are?

Normally speaking, there are two types concrete mixer pump for sale in the market. Electrical type and diesel engine type. You can make a choice which type is suitable for your projects.
If there is not electricity there, diesel type concrete mixer with pump will be the best choice.
For the concrete mixer, there are also two types as well. Drum type concrete mixer and twin shaft concrete mixer. These two types concrete mixers are for different jobs.


Working principle of trailer concrete mixer with pump for sale

Concrete mixer is used to produce the concrete, and then it pours the concrete into the concrete pump directly.
Then the pressure oil generated by the diesel engine-driven oil pump uses the pressure oil to drive the oil cylinder to reciprocate, and drives the concrete piston to complete the suction or pressure delivery action.

How many meters high can trailer concrete pump reach?
Normally speaking, for the common concrete, the actual height it can reach is 70m.

How many meters far can trailer concrete pump reach?
Normally speaking, for the common concrete, the actual horizontal distance it can reach is 300m.
Electrical concrete mixer with pump VS Diesel concrete mixer with pump
The electrical concrete mixer with pump is at lower price if compared with diesel type. This is an advantage. But diesel type concrete mixer with pump for sale is widely used in different working sites even there is not electricity power supply there. So, the diesel type concrete mixer with pump is more popular and accepted by most of the clients.

Best sell models of Concrete Mixer with pump

According to all the orders we received these years, the most popular one is DHBT15/DJBT40, this is a diesel type with 62kW Yuchai diesel engine, 100m steel pipe for free is included. Below is its specification.


Parts Name/Parameters		Parts Brand Name	Quantity	Specification
Power	Diesel Engine	YUCHAI	1 pc	62 KW
		Rated Rotation		1800r/m
Mixing System	Mixer	Domestic	1 set	Drum Mixer, JZM450, 18-22M3/H
	Power			By Hydraulic from Engine
	Submersible Pump		1 pc	hydraulic water pump
	Max. Theoretical Mixing Output	/	/	25m³/h
Pumping System	Mian Oil Pump	Kawasaki	1pc	K3V112
	Double Gear Pump	Domestic	1set	25&16
	Valves	Japanese/ITALY	4sets	overflow and directional valves
	Main Oil Cylinder	Domestic	2pcs	Φ100×Φ70×800mm
	Delivery Cylinder	Domestic	2pcs	Φ200×800mm
	Max. Theoretical Pumping Output	/	/	40m³/h
	Max. Aggregate Size	/	/	Pebble:40     Crushed Stone:30 mm
	Outlet Pressure	/	/	8Mpa
	Slumps	/	/	12-23cm
	Delivery height/horizontal distance	/	/	70/300m



Different application of concrete mixer with pump

It is widely used in house construction, road and bridge construction, tunnel construction and the rural working sites which are far from commercial concrete batching plant. HAMAC concrete mixer with pump is competent for all the different working sites.

6 Tips you should know about concrete mixer pump for sale
When you want to purchase a concrete mixer with pump, there are several tips you should know;

1. Consider your budget firstly, to see if you can afford this cost.
2. The capacity you want to mix or pump per hour;
3. If there is power supply at working site? If not, you have to consider the diesel concrete mixer with pump;
4. What is the usage of this concrete mixer pump? You want to use it for your own projects only? Or you want to rent it to the other clients?
5. How high the building will be? And how far the concrete mixer with pump can be put near to the building?
6. Do you need a high quality concrete under accurate formula for different concrete?

After considering these tips, you can select a suitable concrete mixer with pump.

What are the advantages of using the concrete mixer pump?


1. It combines mixing and pumping to reduce weight and space;
2. The small concrete mixer with pump is convenient to transport in rural with high efficiency;
3. This model can save much labor and cost;
4. It is easy to operate with remote controller;


What are four reasons why a concrete mixer pump may need to be used?

1. Make the work efficiency higher, compared with traditional way, machine will highly increase the efficiency; save time;
2. Save cost for labors. For a project, if you use this concrete mixer with pump, much less labors are required;
3. It can reach higher building and farer working sites;
4. Easily to be moved in different working site if only one compact design. It is a machine with two different functions.


Selling points of concrete mixer with pump from HAMAC


1. Integrated structure frame, it is more stable and safer;
2. The glass plate and cut ring are made from high quality alloy, the hardness is 64HRC(Hardness of diamond is 70HRC);
3. Original SIEMENS PLC,  main electric components are provided by OMRON;
4. 62 kW diesel engine, lower motor power than that of other suppliers. Lower consumption to work, save cost for diesel;
5. 45mm steel plate for the bottom of hopper, much stronger to withstand greater pressure;
6. Compact design, the diesel engine built in the structure frame, smaller and more convenient for moving;
7. Equipped with JZM450 concrete mixer, 750L feeding hopper and 450Lconcrete output per batch, bigger than other companies’ mixer; 8mm thickness Q345 steel plate for mixer body, 12mm thickness steel plate for rolling ring; stronger and higher capacity;
8. We adopt the wearable and skidproof rubber wheel to drive the concrete mixer, its diameter is 380mm which is the biggest in China. It is covered by rubber from Malaysia, more wearable and longer service life;
9. Main hydraulic pump from KAWASAKI, valves from Italy OM. stable work performance;
10. Concrete delivery cylinder is 200mm diameter, and stroke is 1260mm, bigger and higher capacity; inwall is covered with high chrome,  more wearable and longer service life;
11. Equipped with vibrator on the feeding hopper, reduce the residue material in the hopper;




How much concrete can you mix and pump an hour?

For this machine, there is a drum type concrete mixer to produce the concrete, and one concrete pump to pump the concrete from the mixer. The concrete mixer is JZM450, its capacity 18-22m3/h; for the concrete pump, its capacity is 40m3/h. That means, the capacity of concrete mixer determines the capacity of the concrete pump. It is 18-22m3/h.
If you want to make the capacity higher, you can use one more diesel concrete mixer to produce the concrete only, and then pour it to the hopper of concrete pump. It can pump it as well exclude the concrete from its own mixer. Then its capacity can reach 40m3/h.

How to deliver a concrete mixer with pump with pipes in the container?
For the concrete mixer with pump, because of its height, one 40ft high container is required. But actually, it only occupy half 40ft container. If you need two units concrete mixer with pump for sale, one 40ft container is also enough.
So, if you need one unit of concrete mixer pump only, you can consider to put one aggregate batching machine, or a unit of small wheel loader to feed the concrete mixer with pump.
What is the main tear and wear parts for concrete mixer with pump?

Normally speaking, the main tear and wear parts for this machine is the glass plate and cutting ring. But they can last 30,000 cubic meters before replacement. It is a very long service life. For the other parts, when we deliver the goods, some of them will be delivered for free for emergency usage. For example, limit switch, contactor, fuse, pistons etc.

What is concrete mixer with pump price in  Kenya ?

Concrete Mixing Trailer Pump Price Range: 25000-40000 USD
Kenya is a potential market with energy, infrastructure and construction, agriculture, manufacturing, mining, tourism, wholesale and retail, financial services and information as key development areas.
