PLD Concrete Batching Machine
  • Type :
    Related Concrete Equipment
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. High precision electric weighing, PC+PLC control;
2. Digital display on the screen, Reasonable layout,
3. Compact structure, Easy operation,
4. Reliable performance.

Tags: self loading transit mixer priceportable concrete mixer manufactuCement StorageConcrete Boom Pump Truck For Sale In Gaborone

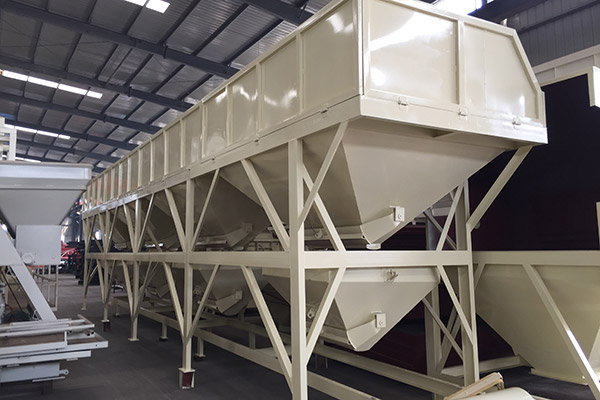

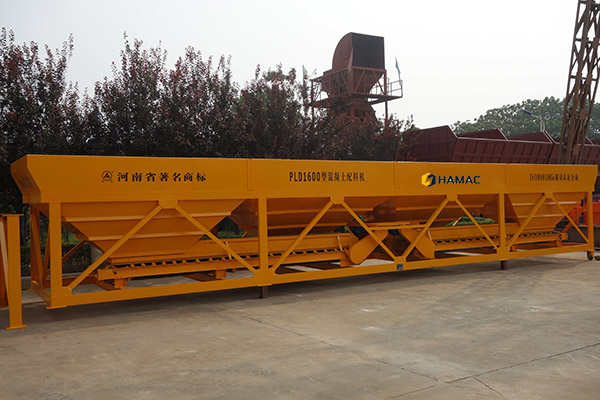

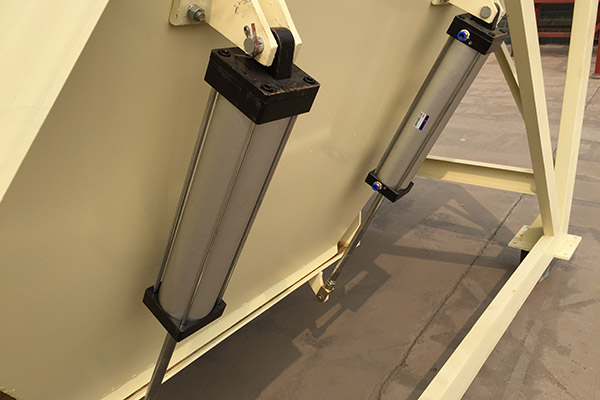

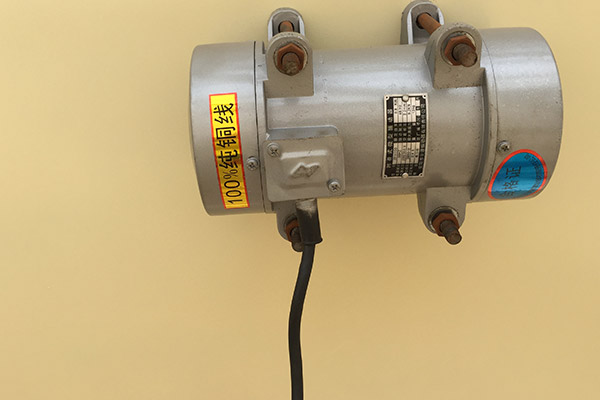

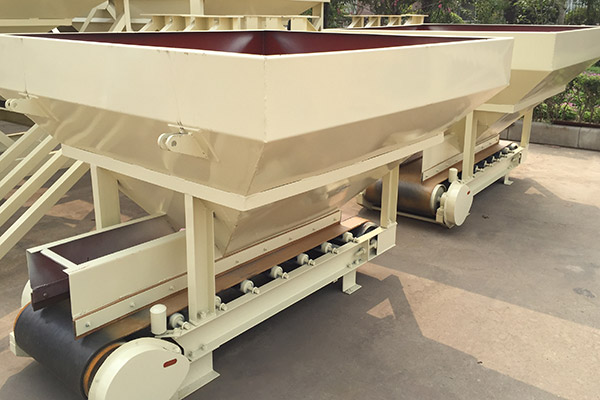

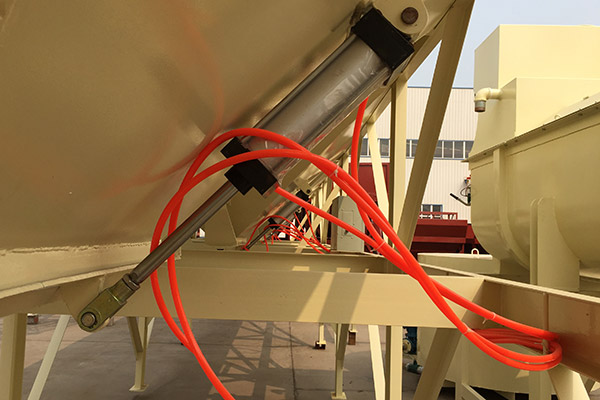

Gallery
Parameters
Model PLD800 PLD1200 PLD1600 PLD2400 PLD3200 PLD4800
Cubage of storage hopper 2m3 2.2m3 3.7m3 12m3 20m3 25m3
Cubage of weighing hopper 0.8m3 1.2m3 1.6m3 2.4m3 3.2m3 4.8m3
Output rate 48m3/h 60m3/h 80m3/h 120m3/h 160m3/h 280m3/h
Accuracy of batching ±2% ±2% ±2% ±2% ±2% ±2%
Max weighing value 1500Kg 2000Kg 3000Kg 4000Kg 5000Kg 8000Kg
Aggregate types
for batching
2-3 2-4 2-4 3-4 3-4 4
Feeding height 3000mm 3000mm 3000mm 3200mm 3500mm 3800mm
Speed of belt conveyor 1.25m/s 1.25m/s 1.25m/s 1.0m/s 1.0m/s 1.6m/s
Power (2-3)x3Kw (2-4)x3Kw (2-4)x3Kw 11Kw 11Kw 15Kw
Overall weight 2500Kg 2900-3900-4900Kg 3500-4750-5750Kg 8500-10500Kg 10200-12600Kg 13600Kg
Note: Our products are being updated constantly, all rights reserved by HAMAC.
