Stone Crushing Plant
Mobile Crushing Plant
  • Type :
    Stone Crushing Plant
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
Vehicle-mounted feeder and high-intensity vibrating screen. It has several advantages such as short length, light weight, strong mobility, better adaptability, less material transportation cost and flexible combination. Either crushing or sand making, its concept is fully adapted to various situations of the mobile crushing machine, eliminating operation barriers caused by venues, environment and configuration as well as providing customers with simple, efficient and low-cost crushing equipment. It is mainly used in industries which often require the removal of materials during their processing, such as metallurgy, chemical, construction materials, water and electricity industries. Especially for highways, railways, hydropower projects and other mobile crushing of stones, customers can adopt a variety of configuration modes according to the type, size of raw materials and processing requirements of finished goods. Jaw type Mobile Crushing Plant greatly expands the field of coarse crushing operation.

Tags: Mobile Crushing Plant for sale Mobile Crushing Plant for sale Solid Mobile Crushing Plant for Popular Putzmeister Concrete Pump In MaseruSchwing Line Pump In Kinshasacat track skid steer for saleWaitzinger Concrete Pump In Kampala

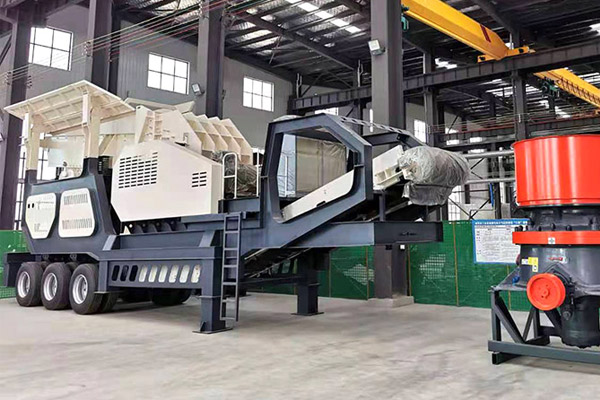

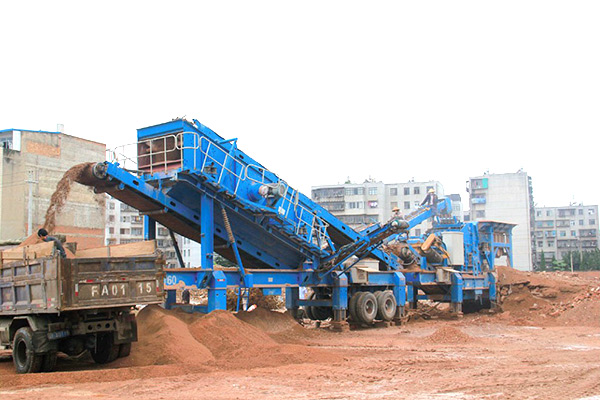

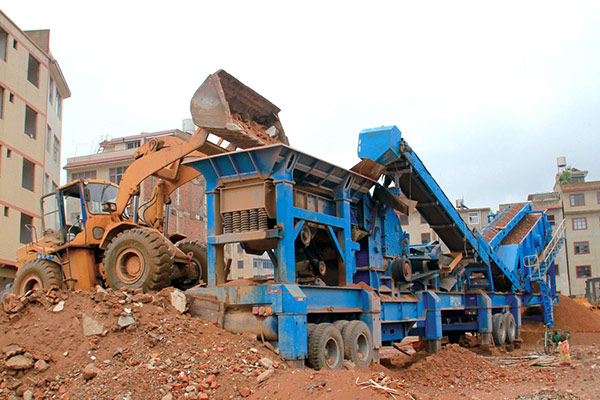

Gallery
Parameters
Mobile jaw crusher
Model MP4060PE MP5075PE MP6090PE MP75106PE MP87106PE MP90120PE
Transport
Dimension		 Length(Mm) 8700 9326 10700 12500 12460 14450
Width(Mm) 2490 2490 2780 2900 3120 3000
Height(Mm) 3895 4125 3840 4450 4440 4800
Weight(T) 17.4 27 35.4 60 60 82
Axle Weight(T) 8.1 16 25 40.5 41.3 52
King Pin Weight(T) 50/9.3 50/11 50/10.4 90/19.5 90/18.7 90/30
Jaw Crusher Model PE400X600 PE500X7500 PE600X900 PE750X1060 PE870X1060 PE900X1200
Feed Opening
(Mm)		 400*600 500*750 600*900 750*1060 870*1060 900*1200
Maximum Feed Size 340 425 500 630 750 780
Setting Range
(C.S.S) (Mm)		 40-100 50-100 65-180 80-180 170-270 95-225
Capacity(M3/H) 10-35 25-60 30-80 72-150 145-235 170-250
Feeder Model GZT0724 GZT0724 GZT0932Y ZSW490X110 ZSW490X110 ZSW600X1300
 Volume(M3) 3.2 3.2 7.6 10 10 10
 Width(Mm) 2200 2200 3150 3000 3000 3000
Belt Conveyor Model B600X5.8Y B650X5.8Y B1000X7.0Y B1000X7.2Y B1000X7.2Y B1200X8.3Y
Side Belt (Optional)
Model B400X2.7Y B500X2.7Y B500X2.7Y B500X2.7Y B650X3.5Y
Separators (Optional) Model RCYD-6.5 RCYD-6.5 RCYD-10 RCYD-10 RCYD-10 RCYD-12
Frame Axes Number Of Axes 1 2 2 3 3 4

Mobile Impact Crusher

Category Model
Mobile Impact Plant MP1010PF(3S) MP1210PF(3S) MP1214PF(3S) MP1315PF(3S)
Transport Dimension
Length(Mm) 10800 11400 11490 12000
Width(Mm) 2780 2780 2880 2865
Height(Mm) 4170 4300 4470 4500
Weight(T) 30 39.3 46.3 42
Axle Weight(T) 19 24.6 30.1 29
King Pin Weight(T) 50/11.0 90/14.7 90/16.2 90/13.0
Impact Crusher
Model PF1010 PF1210 PF1214 PF1315
Feed Opening(Mm) 400*1080 400*1080 400*1430 860*1520
Maximum Feed Size 400 500 500 600
Capacity(T/H) 50-80 70-120 100-180 160-250
Feeder
Model GZT0724 GZT0932 ZSW3895 GZT1148
Feed Hopper Volume(M3) 3.2 7.6 9 10
Hopper Width(Mm) 2200 3150 3290 3000
Main Belt Conveyor
Model B800X7.0Y B800X7.5Y B1000X7.2Y B1000X7.2Y
Side Of The Belt Conveyor
Model B400X2.7Y B500X2.7Y B500X2.7Y B500X2.7Y
Separators (Optional)
Model RCYD-8.0 RCYD-8.0 RCYD-10.0 RCYD-10.0
Frame Axes
Number Of Axes 2 2 2 3



Mobile Cone Crusher
Category Model
Product
Name		 MP150HPC3S
(1)		 MP150HPC3S
(2)		 MP150HPC3S
(3)		 MP150HPC4S MP200HPC MP200HPC2S MP200HPC3S
Transport
Dimension		 -
Length(Mm) 11840 13300 13920 13920 10000 13720 14700
Width(Mm) 2780 2780 2780 2780 2780 2780 2865
Height(Mm) 4360 4350 4360 4460 4160 4350 4220
Weight(T) 31.8 31 33 34.4 22.4 37.3 42.9
Axle Load 21.8 22 22.6 23.8 14.3 26 29

King Pins/
Axle Load

 50/10.0 50/9.0 90/10.1 90/10.6 50/8.1 50/11.5 90/14
Cone Crusher -
Model HPC150 HPC150 HPC150 HPC150 HPC200 HPC200 HPC200
Max Feed Size 50-160 50-160 50-160 50-160 60-180 60-180 60-180
Adjustment
Range Of
Discharge Port		 9-32 9-32 9-32 9-32 9-32 9-32 9-32
Vibrating
Screen		 -
Model 3YK1235 3YK1545 3YK1548 4YK1548 No 2YK1860 3YK1860
Belt Conveyor -
Model No B800X7.2Y B800X7.4Y B800X7.4Y B1000X7.2Y B1000X8.2Y B1000X8.2Y
Axis Number -
Model Biaxial Biaxial Biaxial Biaxial Biaxial Biaxial Triaxia



Category Model
Product Name MP200HPC4S MP300HPC MP300HPC4S MP300HPC2S MP300HPC3S MP300HPC4S
Transport Dimension
Length(Mm) 14800 11200 15500 15250 15690 15690
Width(Mm) 3040 2780 2865 3000 3290 3300
Height(Mm) 4550 4180 4300 4500 4500 4510
Weight(T) 45.1 36.1 55.6 55.8 53 54.4
Axle Load 30.8 25.8 25.6 35.5 34.5 35.8
Kingpins/Axle Load 90/14.3 50/10.3 90/20 90/20.3 90/18.5 90/18.6
Cone Crusher
Model HPC200 HPC200 HPC300 HPC300 HPC300 HPC300
Max Feed Size 60-180 80-240 80-240 80-240 80-240 80-240
Adjustment Range
Of Discharge Port		 9-32 9-51 9-51 9-51 9-51 9-51
Vibrating Screen
Model 4YK1860 No 4YK1860 2YK2160 3YK2160 4YK2160
Belt Conveyor
Model B1000X6.5Y B1000X7.2Y B1000X8.2Y B1000X8.2Y B1000X8.2Y B1000X8.2Y
Axis Number
Model Triaxial Tiaxial Triaxial Triaxial Triaxial Triaxial
