Concrete Placing Boom

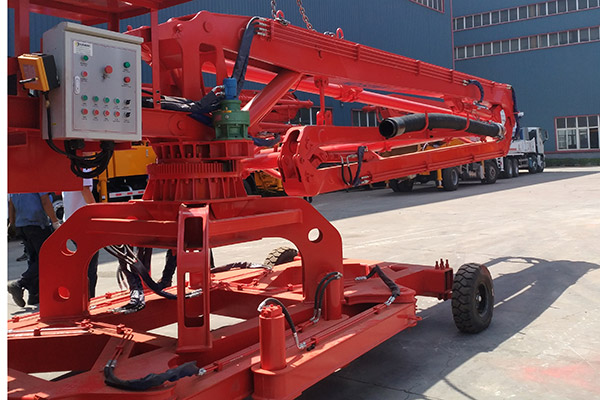

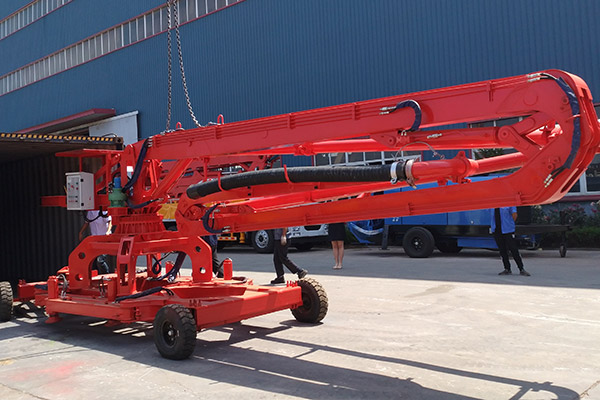

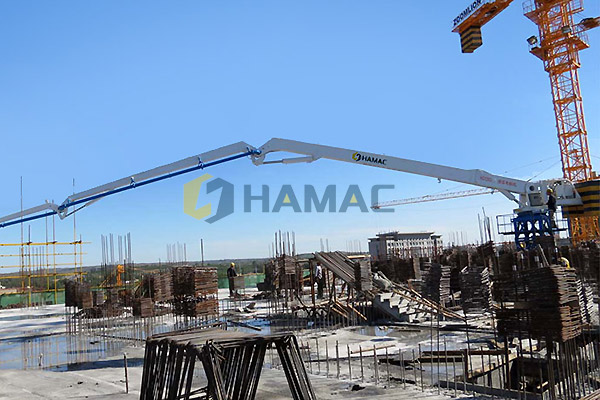

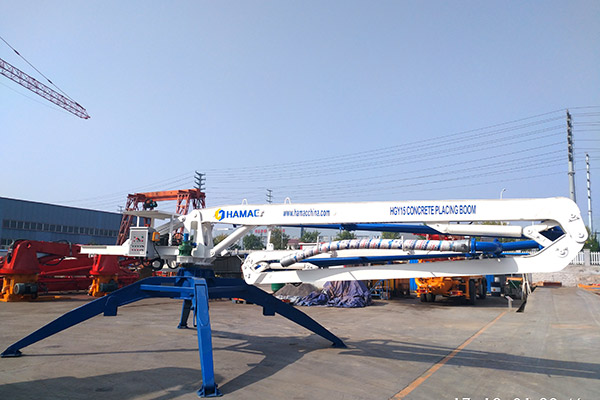

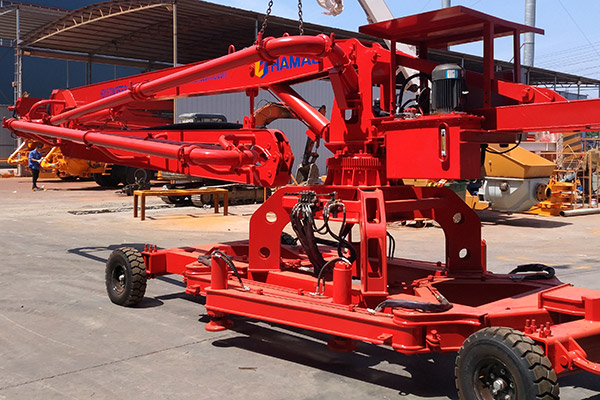

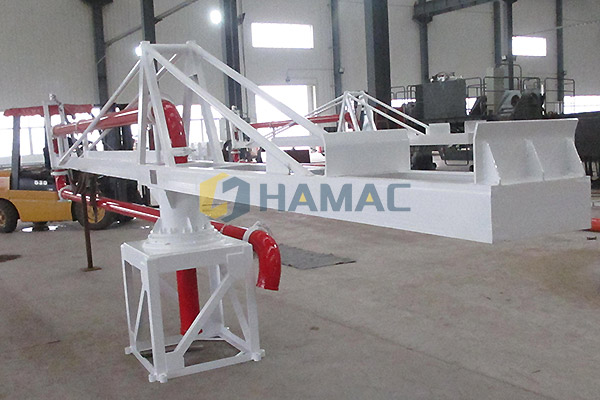

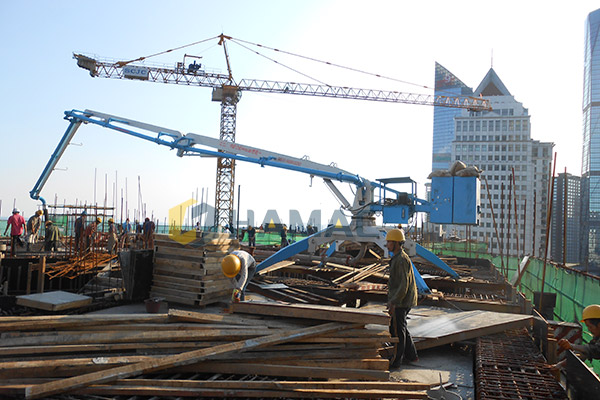

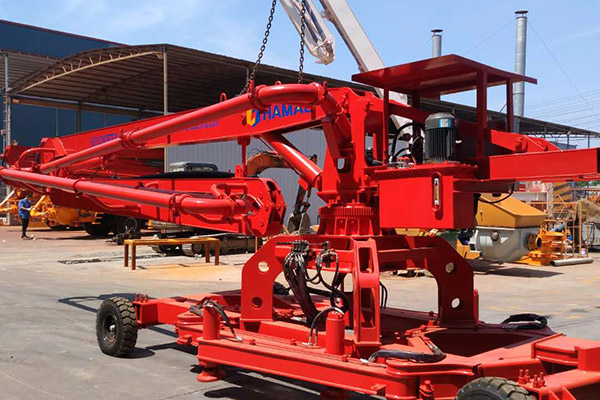

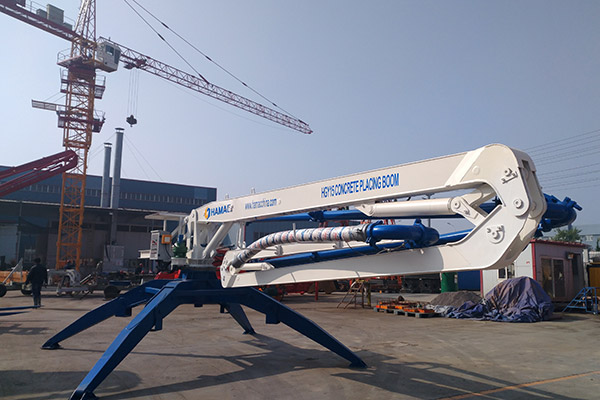

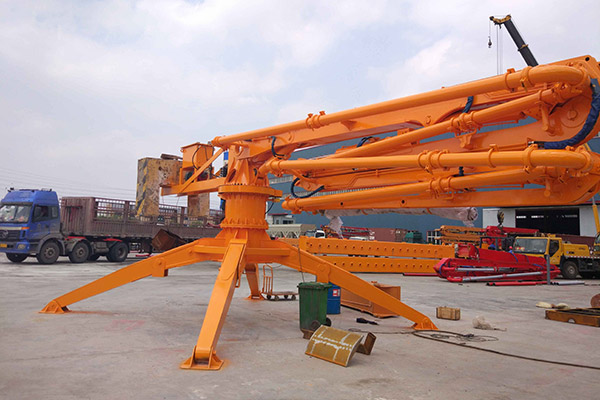

Mobile Hydraulic Concrete Placing Boom
  • Type :
    Concrete Placing Boom
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
1. It can be placed according to needs of field pouring.
2. Compact structure, light weight, and can be hoisted and transported as a whole.
3. Flexible, widely use and applicable for complex construction site.
4. Easy operation, safe and reliable, economical and practical.

Tags: tower boom concrete pump concrete boom pumps boom placer schwing stetter Buy Concrete Pump Truck Super Speedkushlan electric cement mixer for factory outletstatic concrete pump for sale in Saint-Denisaggregate batching plant

Gallery
Parameters
Item HGY13 HGY15 HGY17 HGY21
Max. Placing Radius (M) 13 15 17 21
Big Arm Length (M) 3.7 6 6.66 6.496
Big Arm Elevation (°) -2～84.4 0～70 0～65 0～65
Medium Arm Length (M) 4.52 5 5.73 4.585
4.59
Medium Arm Elevation (°) 0～180 0～180 0～180 0～180
0～180
Small Arm Length (M) 4.78 4 4.61 5.029
Small Arm Elevation (°) 0～180 0～180 0～180 0～180
Hose Length (M) 3 3 3 3

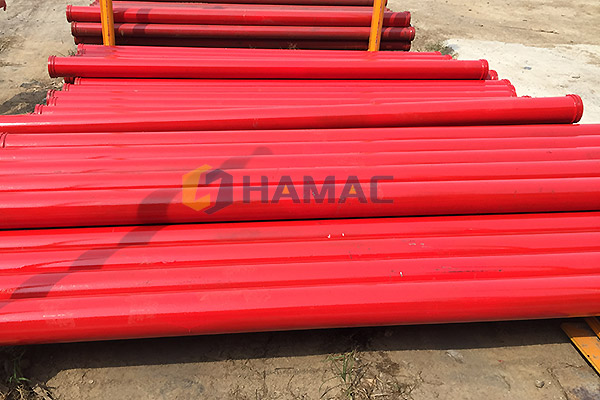

Concrete Delivery Pipe (Mm) Ø125×6 Ø125×6 Ø125×6 Ø125×6
Tail Rotary Radius (M) 2.72 2.81 3.51 3.51
Total Power (Kw) 4 4 5.5/7.5 11
System Pressure  (MPa) 24 24 24 24
Rotary Speed (R/Min) 0.3—0.8 0.3—0.8 0.3—0.8 0.3—0.8
Rotary Range (°) 0～360 0～360 0～360 0～360
Supporting Legs Span (M) 3.15×3.15 4×4 4.6×4.6 4.6×4.6
Overall Height (M) 2.9 2.6 3.2 3.2
Bare Machine Weight (Kg) 2700 3230 5000 10000
Balance Weight (Kg) 2×900 2×1100 2200 2×2500
Control Mode Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control
