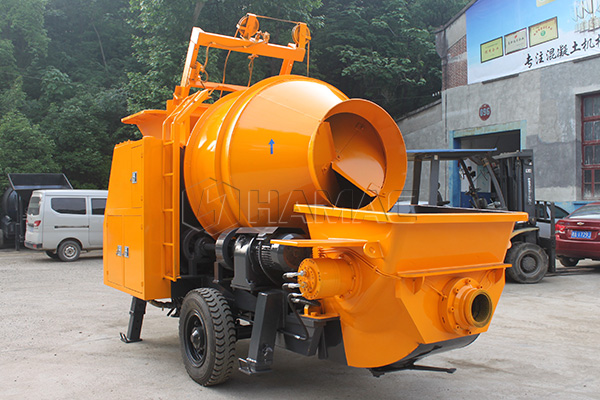

DJBT40 Diesel Concrete Mixer Pump
  • Type :
    Concrete Mixer With Pump
  • Brand :
    HAMAC
  • Origin :
    China
Features
Concrete mix pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.

1. It combines mixing and pumping to reduce weight and space;
2. The small concrete mixer with pump is convenient to transport in rural with high efficiency;
3. This model can save much labor and cost;
4. It is easy to operate with remote controller;
5. It is built with diesel engine, you can use it on site without electricity. It is very suitable for small construction projects in rural place where is in poor electricity condition.

Tags: concrete mixing pump Diesel Engine Driven Concrete Mixer with Pump Truck mixer concrete pump Concrete Mixer Pump Machine In MaseruMounted Concrete Pump In MaseruPortable Cement Silo Wildly SoldDaewoo Concrete Pump In Mogadishu

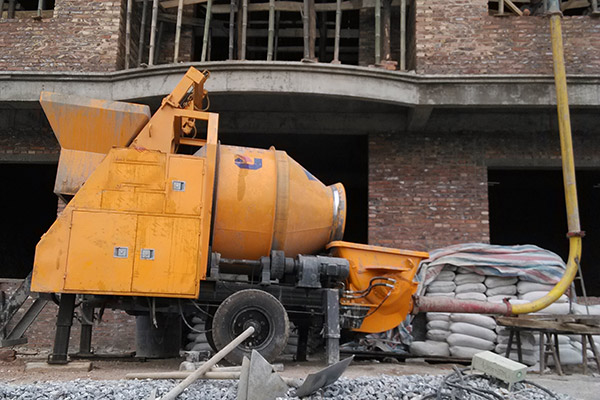

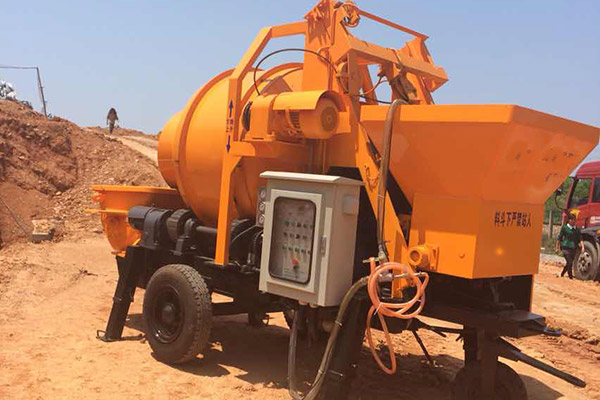

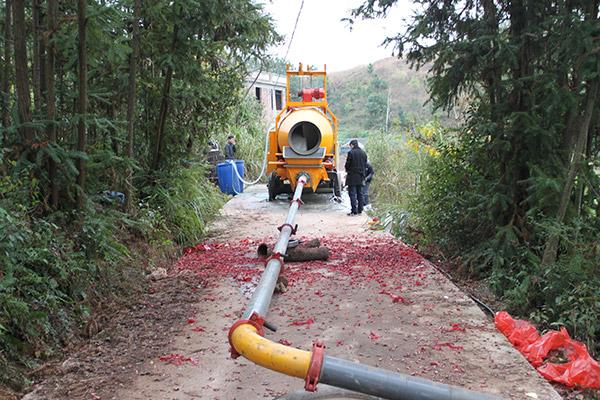

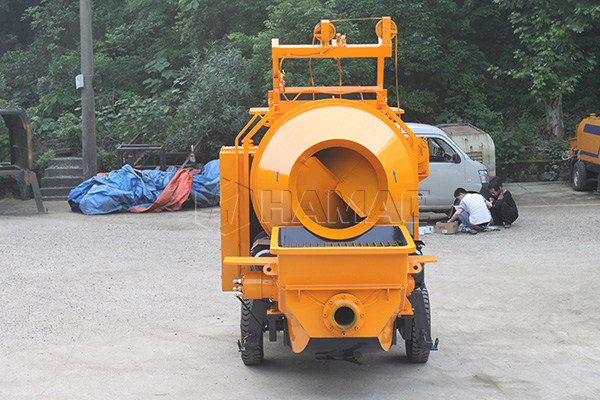

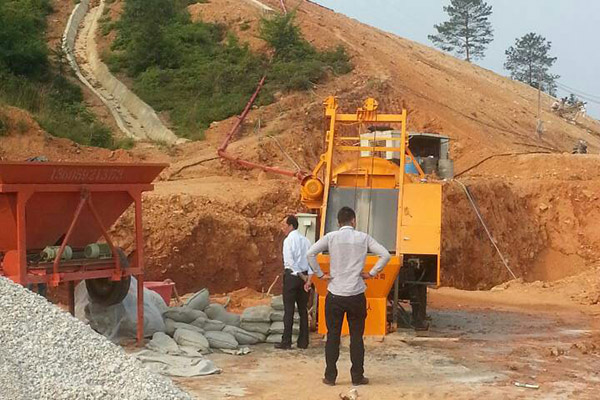

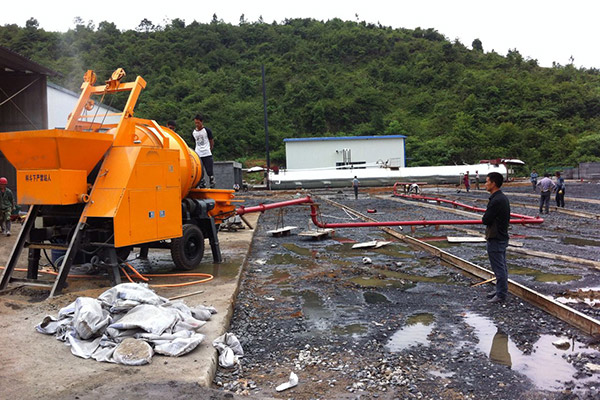

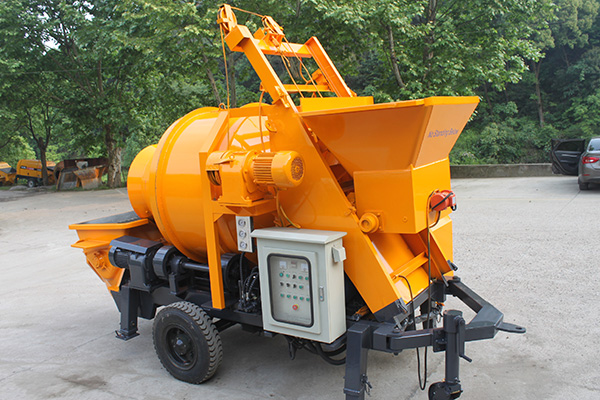

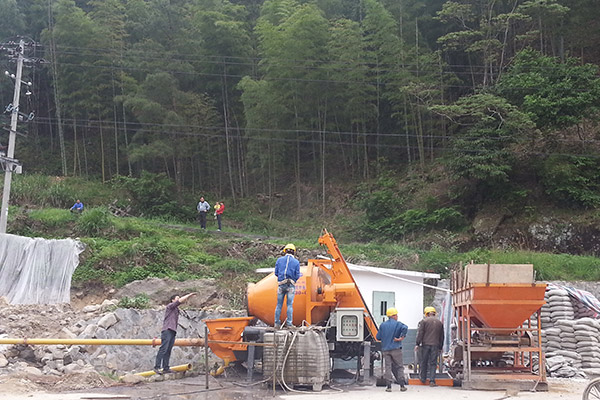

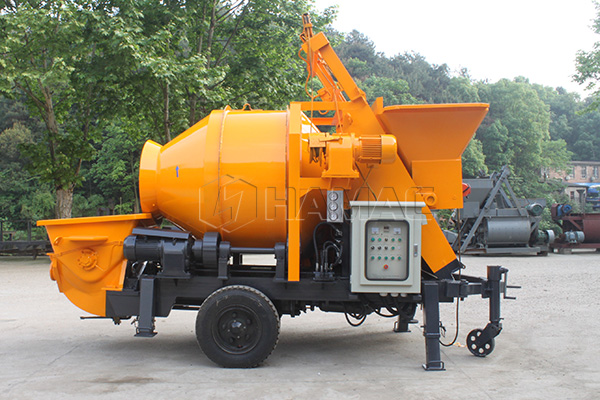

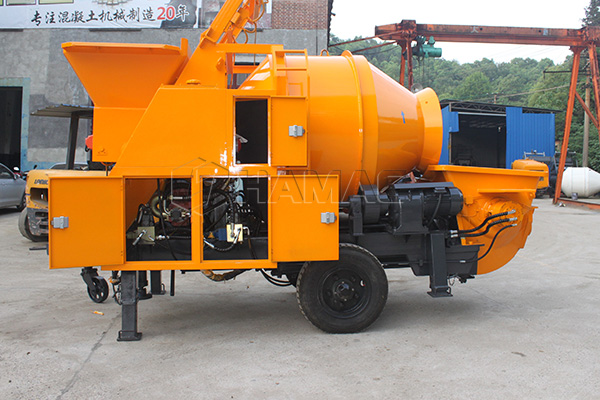

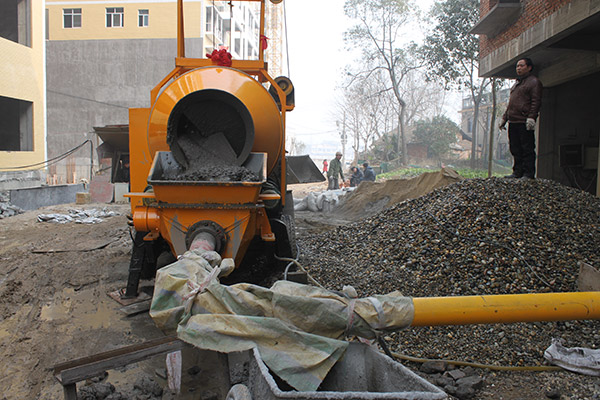

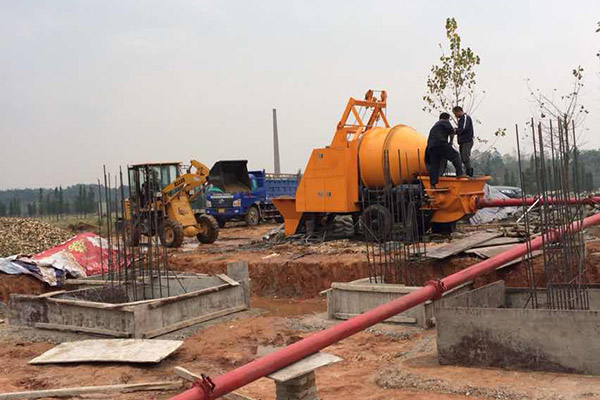

Gallery
Parameters
Diesel Engine Driven Concrete Mixer with Pump
Parts Name/Parameters Parts Brand Name Quantity Specification
Power Diesel Engine WEICHAI 1 pc 72 KW
Rated Rotation   1800r/m
Mixing System Mixer Domestic 1 set Drum Mixer,JZM450
Power     By Hydraulic from Engine
Submersible Pump   1 pc hydraulic water pump
Max. Theoretical Mixing Output / / 25m³/h
Pumping System Main Oil Pump Kawasaki 1pc K3V112
Double Gear Pump Domestic 1set 25&16
Valves Japanese 4sets overflow and directional valves
Main Oil Cylinder Domestic 2pcs Φ100×Φ70×800mm
Delivery Cylinder Domestic 2pcs Φ200×800mm
S Valve Domestic 1pc Φ200mm
Cutting Ring alloy 1pc Φ200mm
Glass Wear Plate alloy 1pc Φ200mm
Max. Theoretical Pumping Output / / 40m³/h
Hydraulic System Type / / Open
Hopper Capacity × Filling Height / / 600/1050(L/mm)
Max. Aggregate Size / / Pebble:40
Crushed Stone:30 mm
Outlet Pressure / / 8Mpa
Oil Tank Capacity / / 200L
Rated Speed / / 1480Rpm
Slumps / / 12-23cm
Tyre Size / / 700R16
Towing Speed / / Max. 8km/h
Overall Total Weight / / 5300kg
Machine Size(L*W*H) / / 4960*2100*2600 mm
Delivery height/horizontal distance / / 70/300m
Packing / / 1* 40HQ

Note: Our products are updated constantly, if there is any data discrepancy ,please refer to the actual product.
