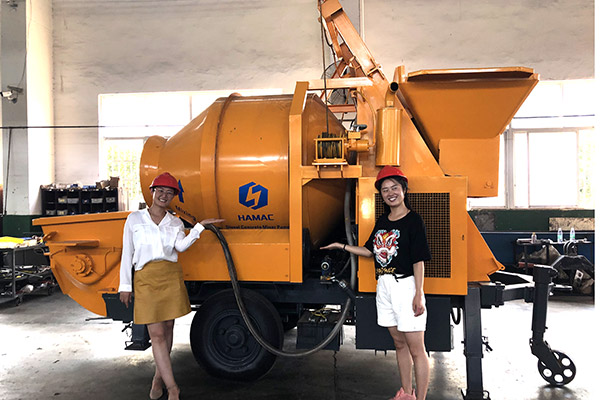

JBT40 Electric Concrete Mixer Pump
  • Type :
    Concrete Mixer With Pump
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. Small land occupation: In comparison with only one concrete mixer or just one concrete pump, mixer pump occupies a less limited area and can be moved easily in order to apply it in different construction sites
2. Larger application: Since we take the carrying capacity of rural power into consideration, it has a much smaller power and has a larger application than common concrete pump.
3. Advanced system: We adopts double open hydraulic loops. The pumping hydraulic circuit is independent of distributing hydraulic circuit. Therefore, the reliability of the whole system is also much higher as well as the components’life is prolonged greatly.
4.High efficiency: It increases efficiency by makes mixing function and pumping function into one, which saves more time for other construction procedures. Besides, it saves labor costs and reduces labor intensity by adopting fully automated construction operating system.
5. Simple operation:The operation is easy to be mastered. It is worth mentioning that our concrete pump mixer is equipped with wire remote control. It makes the operation more convenient
6. Value-added service: We can provide you with conveying pipes for free. Usually, the pipe length of small mixer pump is sixty meters. For middle mixer pump, the free length can reach to one hundred meters.

Tags: concrete pump trailer for sale concrete pump price schwing pumps Daewoo Concrete Pump Truck In Funchaldiesel engine concrete mixer suppliersStatic Concrete Pump For Sale In AsmaraSany Concrete Pumps In Accra

Gallery
Parameters
Electric Driven Concrete Mixer with Pump
Different parts and information Brand/Origin Quantity Specification
Power 380V Local Electric 1 pc Customized accept
Electric Component / /  Siemens/Schneider/Omron
Mixing System Mixer Domestic 1 set JZM450 drum mixer
Mixing Motor Domestic 2 pc 5.5KW
Hoist Motor Nanjing te zhong 1 pc 5.5KW
Submersible Pump Shanghai Bali 1 pc 0.75KW, pumping water to mixer
Max. Theoretical Mixing Output / / 18-22m³/h
Pumping System Main Motor Siemens/Zhaoyang 1pc 37KW
Motor Rated Speed / / 1480Rpm
Main Oil Pump Kawasaki 112 1pc  40 cubic meters per hour.
Double Gear Pump Domestic 1set 25&16
 Valves Tokyo Keiki 4sets overflow and directional valves
Main Oil Cylinder Domestic 2pcs Φ100*Φ70*1000mm
Delivery Cylinder Domestic 2pcs Φ200*1000mm
S Valve Domestic 1pc Φ200mm
Cutting Ring alloy 1pc Φ200mm
Glass Wear Plate alloy 1pc Φ200mm
Max. Theoretical Pumping Output / / 40m³/h
Outlet Pressure / / 8Mpa
Hydraulic System Type / / Open
Motor Rated Voltage / / 380v
Max. Aggregate Size / / Pebble:40  Crushed Stone:30
Concrete Outlet Diameter  / / Φ180mm
Hopper Capacity × Filling Height / / 800*1000 (L*mm)
Machine Size(LxWxH) / / 4960*2100*2500 mm
Total Weight / / 5300kg
Tyre Size / / 700R16
Towing Speed / / Max. 8km/h

Note: Our products are updated constantly, if there is any data discrepancy ,please refer to the actual product.
