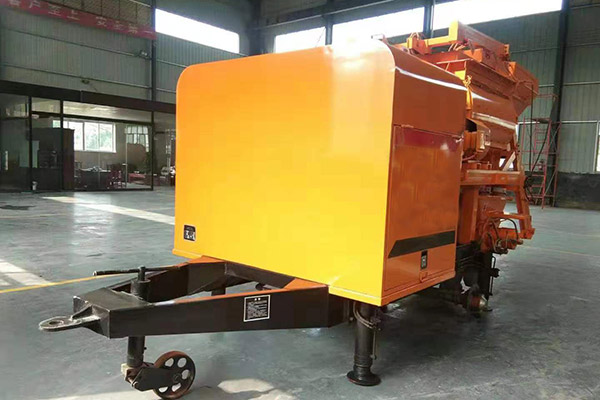

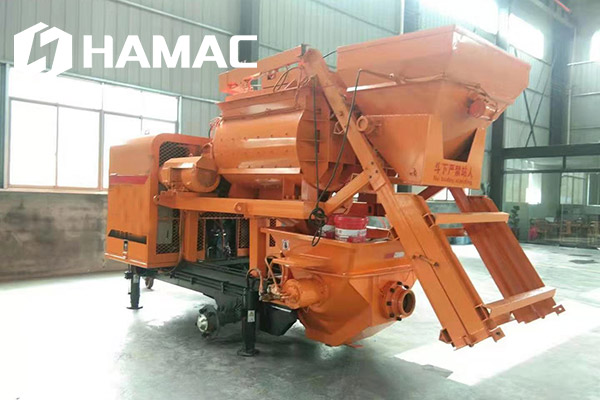

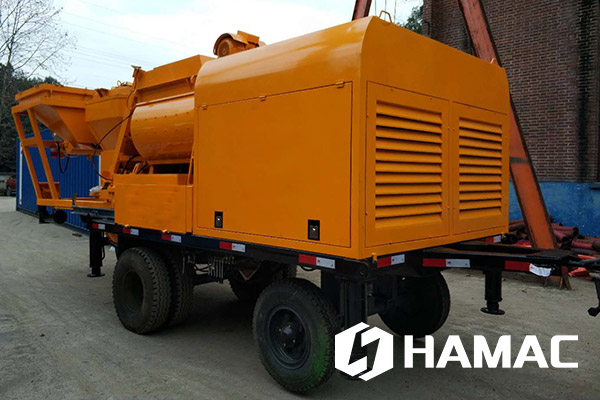

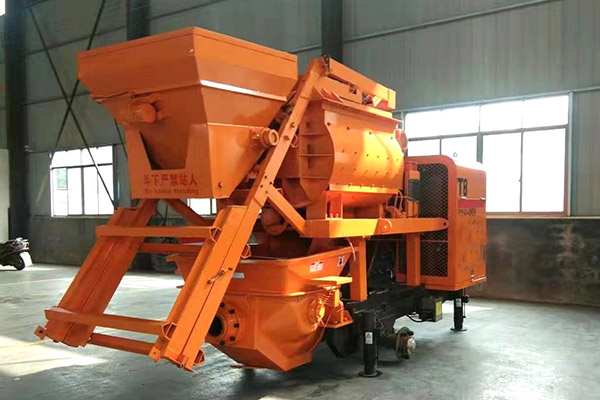

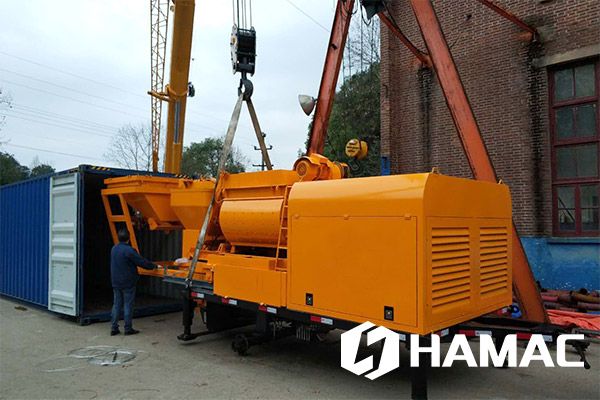

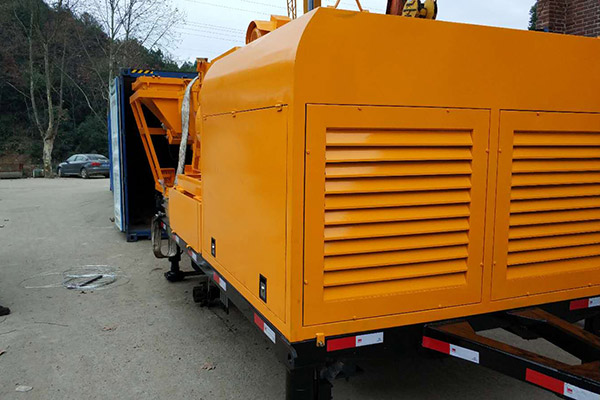

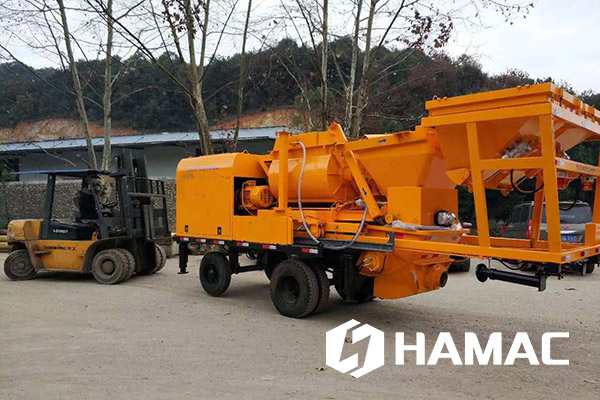

HBT15-L1 Electric Concrete Mixer Pump |
|
Parts Name/Parameters |
Parts Specification |
|
Models |
HBT25-L1 |
|
Power |
Power supply model |
Local electricity 3P |
|
Electric Component |
Siemens/Schneider/Omron |
|
Mixing System |
Mixer |
JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch |
|
Mixing Motor |
18.5kW |
|
Hoist Motor |
5.5kW |
|
Submersible Pump |
0.75kW |
|
Max. Theoretical Mixing Output |
25m³/h |
|
Pumping System |
Main Motor |
37KW |
|
Motor Rated Speed |
1480 RPM |
|
Mian Hydraulic Oil Pump |
KAWASAKI K3V112 |
|
Double Gear Pump |
25&16 |
|
Valves |
overflow and directional valves, OM, Italy brand |
|
Main Oil Cylinder |
Φ100*Φ70*1000mm |
|
Delivery Cylinder |
Φ200*1000mm |
|
S Valve |
Φ200mm |
|
Cutting Ring |
Φ200mm |
|
Glass Wear Plate |
Φ200mm |
|
Max. Theoretical Pumping Output |
40m³/h |
|
Outlet Pressure |
8Mpa |
|
Hydraulic System Type |
Open circuit |
|
Motor Rated Voltage |
Customized |
|
Max. Aggregate Size |
Pebble:40mm Aggregate:30mm |
|
Delivery height and horizontal distance |
70m/300m |
|
Hydraulic Oil Tank Volume |
200L |
|
Concrete Outlet Diameter |
Φ180mm |
|
Hopper Capacity × Filling Height |
600*1400 (L*mm) |
|
Machine Size(LxWxH) |
5100*2200*2450 mm |
|
Total Weight |
7000kgs |
|
Tyre Size |
700R16 |
|
Towing Speed |
Max. 8km/h |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
