HMC200 Self-loading Concrete Mixer
  • Type :
    Self-loading Concrete Mixer Truck
  • Brand :
    HAMAC
  • Origin :
    China
Features
SCOPE OF APPLICATION

1. House and workshop in remote areas;
2. concrete road;
3. Water canal;
4. Infrastructure in remote areas;
5. Reservoir dam project

Advantages:

1. It combines loading, mixing, transit and discharging;
2.  Famous brand engine, YUCHAI and CUMMINS as options;
3. An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced.
4.  Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
5. 270 degree rotation mixing drum, it can discharge the concrete in different directions;
6.  Equipped with famous brand hydraulic system for stable work performance;
7.  4*4 drive mode, it is suitable for different rough working conditions;
8. Equipped with washing system, you can make the machine clean immediately after finishing working;
9.  Well-decorated cabin for driver, equipped with air conditioner; more comfortable;
10. All the functions controlled by joystick and buttons,
11. 4 wheels steering and 2 wheels steering optional;
12.  It can be delivered by the container, save cost for sea freight.

Tags: self loading pan mixer ready mixed concrete truck portable cement mixers Biggest Concrete Pump Truck In AccraConcrete Line Pump Truck In Maputozoomlion concrete pump truck in FreetownSchwing Boom Pump In Juba

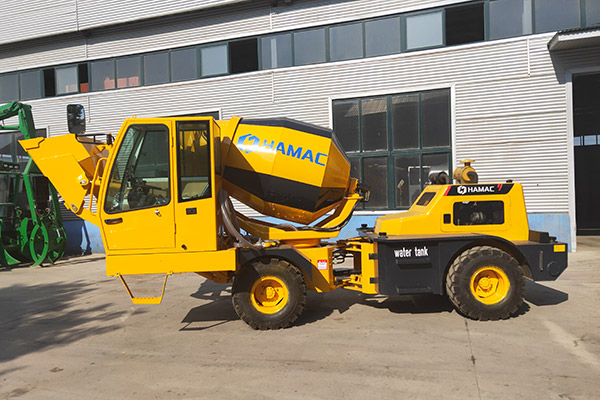

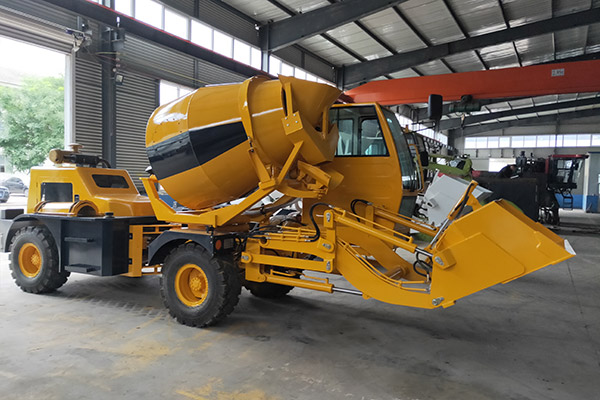

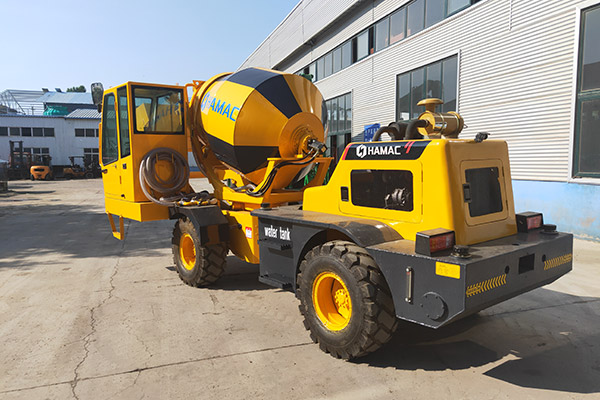

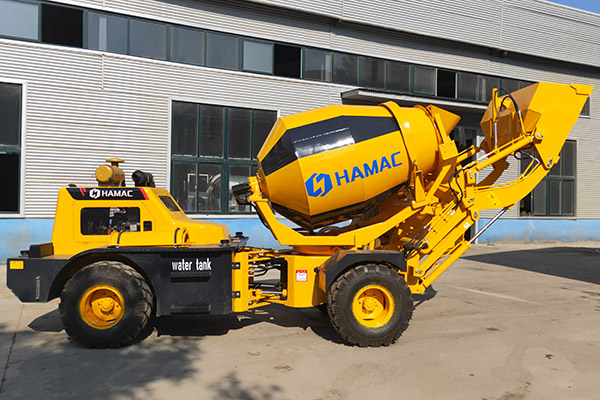

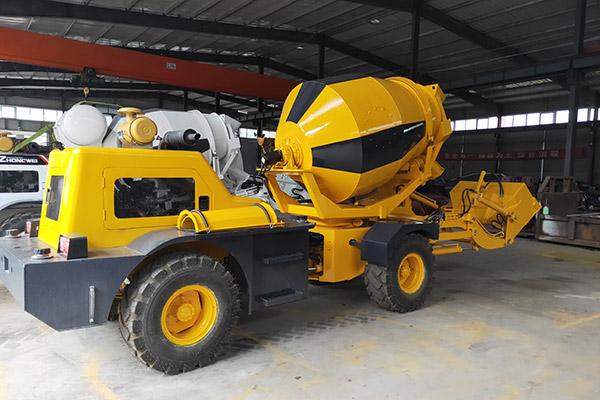

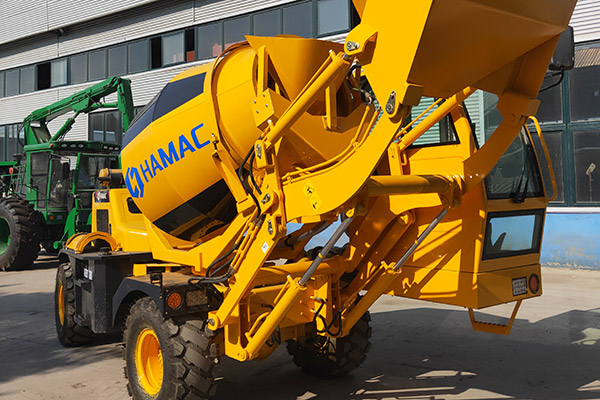

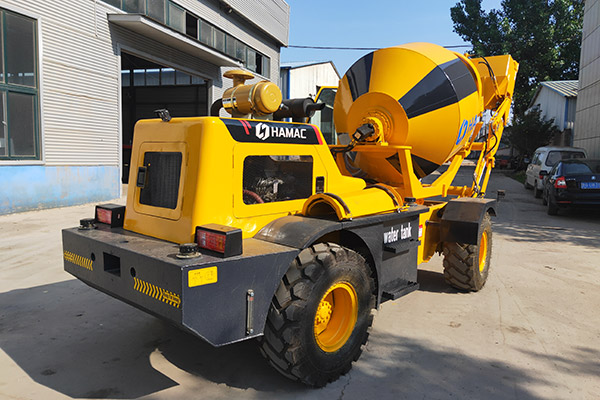

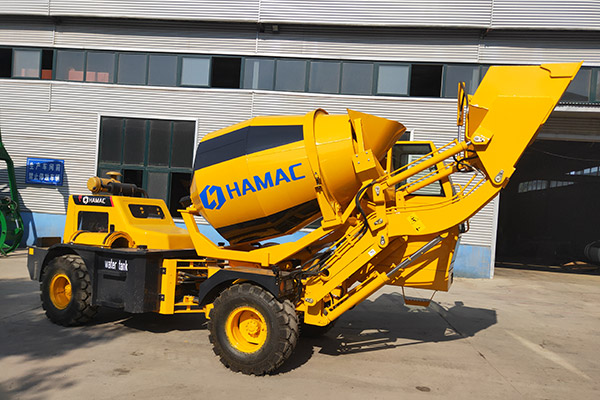

Gallery
Parameters
1.5m3 Self-loading concrete mixer Technical Data
No. Name Detailed information
1 Mixing system  Drum geometric volume:2.0m3,Concrete drum output:1.5m3/batch,Double mixing screws, Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2 Max. capacity 6m3/h
3 Transmission Diesel engine drives the torque converter, there is a transmission shaft installed on it to drive the transmission box which will be used to driven the four wheels
  High and low speed  flexible shaft shift gear
4 Running mode Hydraulic running
5 Joymix All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6 Hand shank To controll the mixing drum rorate 270°
7 Diesel engine   YUNNEI490GBZ    3200r/min   Rated power:55kw
8 Hydraulic pump  Double gears2032/2032
9 Loading shovel        Effective capacity per load 0.39m3, complete with hydraulic opening gate.
10 Discharging chute Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.
11 Water tank     330 L
12 Tanks Fuel tank:95 L    Hydraulic oil tank: 95 L
13 Tyre Off road industrial type 20.5/70-16
14 Weighing system Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15 Servicing brake  vacuum servo brake
16 Parking brake  automatically air-cut brake
17 Water supply system Self-contained. Hydraulic driven water pump
18 Electric system 24V
19 Overall dimension Length: 6300mm;Width: 2300mm;Height: 2550 mm;Wheel base:2230 mm;Tread:1470mm
20 Running speed  Low speed:0-8km/h;High speed 8-25km/h;
21 Min. Turning radius 4850 mm
22 Weight  4800kgs

Note: Our products are being updated constantly, all rights reserved by HAMAC.
