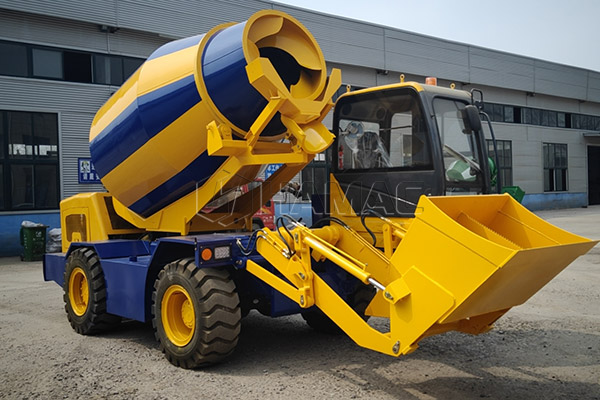

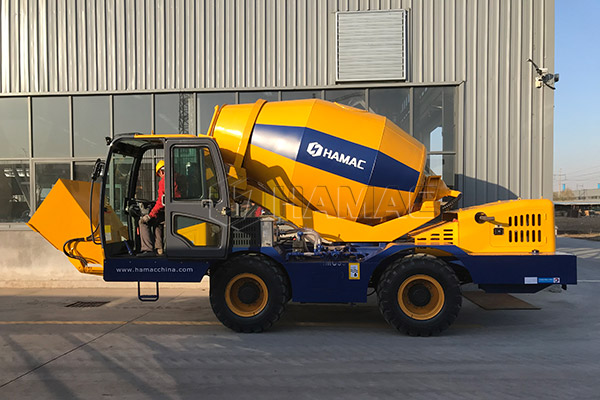

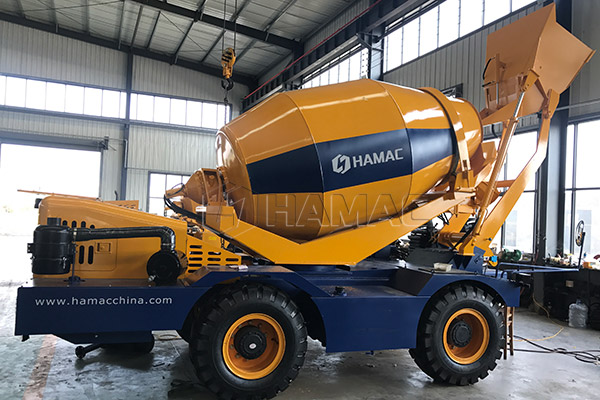

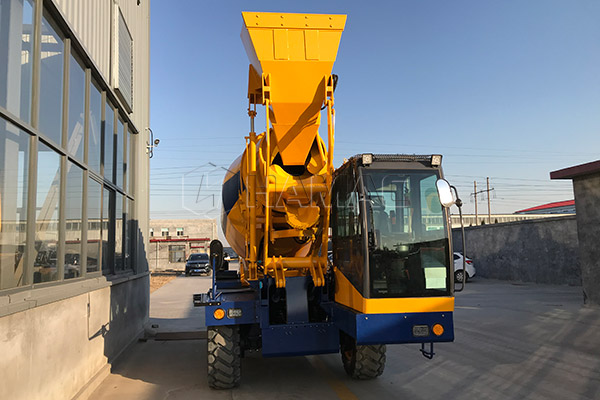

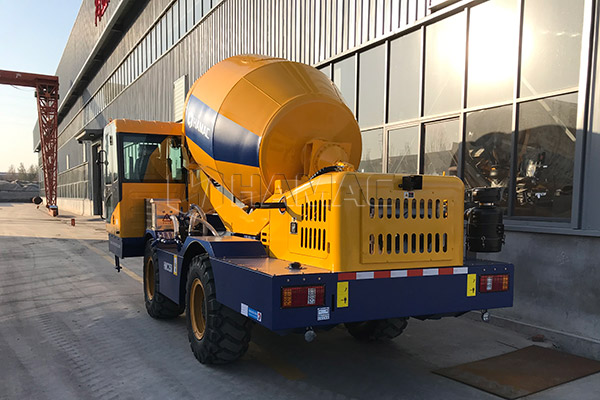

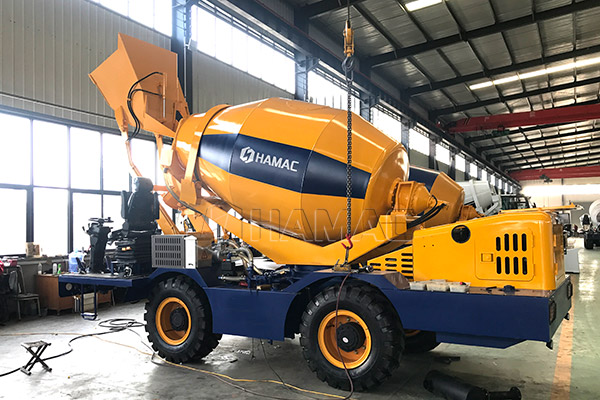

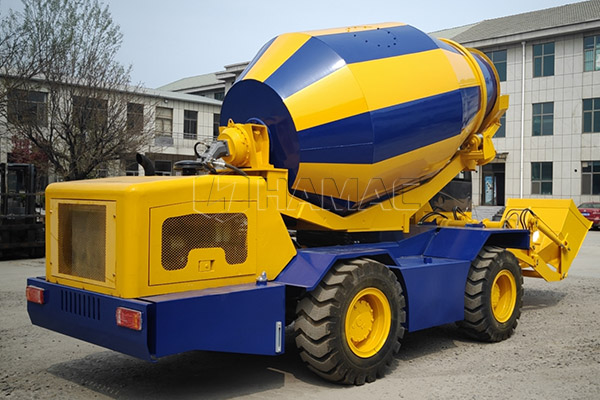

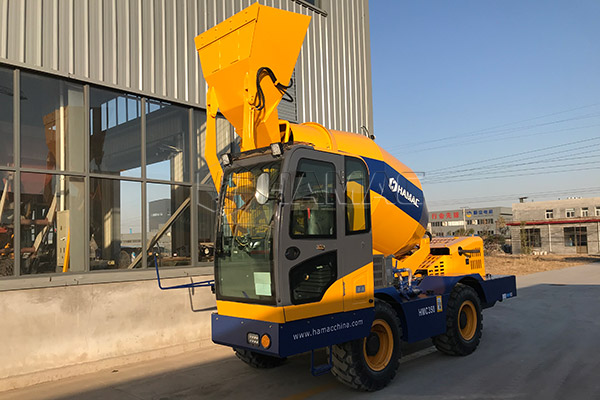

HMC250 Self-loading Concrete Mixer
  • Type :
    Self-loading Concrete Mixer Truck
  • Brand :
    HAMAC
  • Origin :
    China
Features
SCOPE OF APPLICATION

1. House and workshop in remote areas;
2. concrete road;
3. Water canal;
4. Infrastructure in remote areas;
5. Reservoir dam project

Advantages:

1. It combines loading, mixing, transit and discharging;
2.  Famous brand engine, YUCHAI and CUMMINS as options;
3. An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced.
4.  Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
5. 270 degree rotation mixing drum, it can discharge the concrete in different directions;
6.  Equipped with famous brand hydraulic system for stable work performance;
7.  4*4 drive mode, it is suitable for different rough working conditions;
8. Equipped with washing system, you can make the machine clean immediately after finishing working;
9.  Well-decorated cabin for driver, equipped with air conditioner; more comfortable;
10. All the functions controlled by joystick and buttons,
11. 4 wheels steering and 2 wheels steering optional;
12.  It can be delivered by the container, save cost for sea freight.

Tags: self loading concrete mixer suppliers carmix self loading mixer ajax fiori self loading concrete mixer Placing Boom Spider For Fully AutomaticConcrete Trailer Pump For Sale In KhartoumBuilding Mixer WholesalesBoom Pump Truck In Djibouti

Gallery
Parameters
HMC250 Self-loading Concrete Mixer
Name Item Specification
  Net 6200 KG
Transmission Full Hydraulic
4 wheel drive
Brake Air Brake
Chassis Off-road
Tread 1800mm
Wheelbase 1500mm
Loader bucket capacity 0.55m3
Control Hydraulic
Tilt angle 30%
Speed High 0-25KM/H
Low 0-8KM/H
Mini turning radius 6400mm
Tyre model 16/70-20
Engine Type YUNEI / YN38GBZ
Rated Power/RPM 76KW/2400RPM
Max. Torque/RPM 410N.M/2400RPM
Cylinder 4
Starter Electric
Cooling type water cooling
Maxing Drum Geometric capacity 4.6M3
Capacity 2.5m3
Bank Angle 16 °
Rotation Angle 270°
Chute Swing Angle ≥60°
Angle control Hydraulic
Size Long:2210m
Short:430m
Loader Weighing model computer control
Concrete Standard C15.C20.C25 C30
Accuracy Cement ≤±2%/time
Relative  Error ≤±3%/time
water ≤±1%/time
Additive ≤±1%/time
Admixture ≤±2%/time
Loader control Hydraulic 4 way stick
Over size 6700*2300*2950mm

Note: products are updated constantly, any data discrepancy, refer to the actual product.
