Concrete Batching Plant

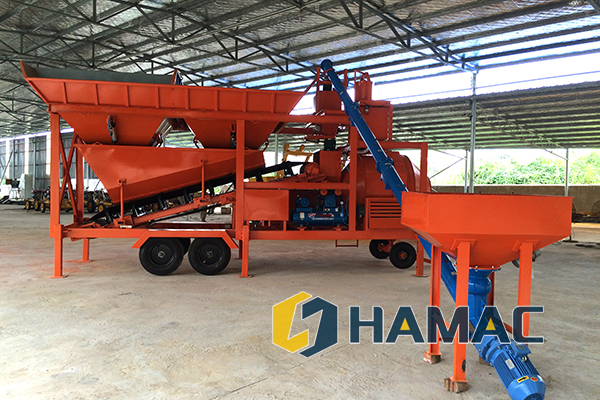

Mobile Concrete Batching Plant
  • Type :
    Concrete Batching Plant
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
1. Easily to be moved to different working sites;
2. It will take short time to be installed and commissioning;
3. It will save the cost for purchasing the mixing trucks and make the transport time shorter and operation cost lower;
4. The concrete quality will not be affected because of the long distance transportation;

Tags: Portable Concrete Batching Plant mobile Mixing Plant Mobile Concrete Mixier hzs60 concrete batching plantConcrete Mix Pumping Machine In Diego GarciaPlacement Boom Concrete Pump In AntananarivoBest Concrete Pump In Brazzaville

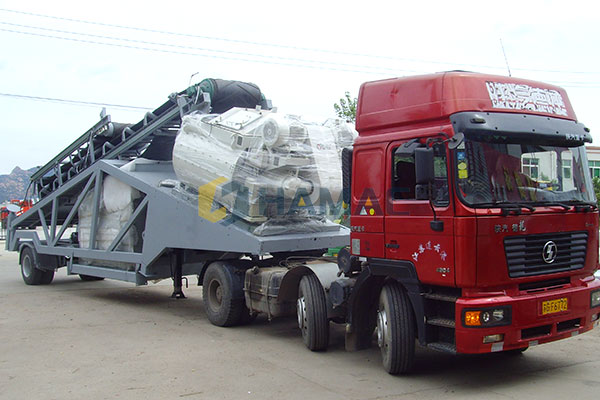

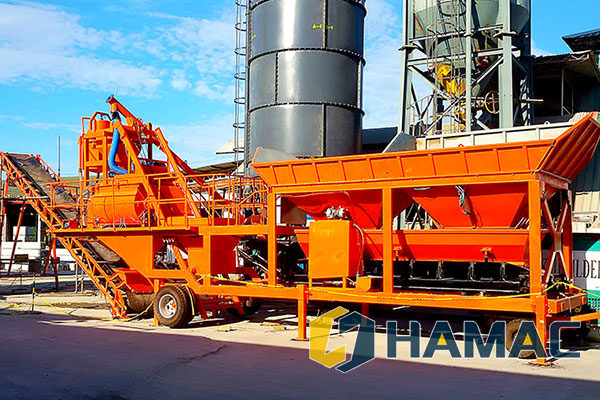

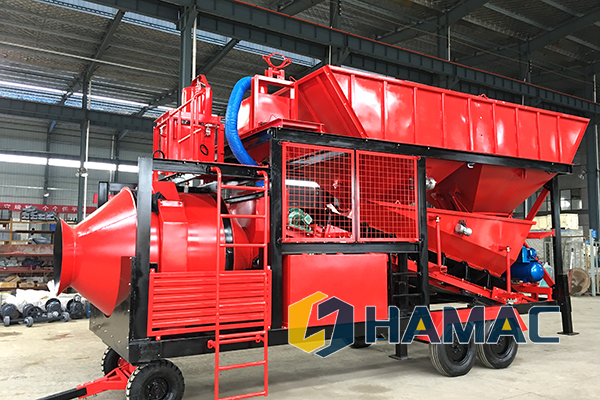

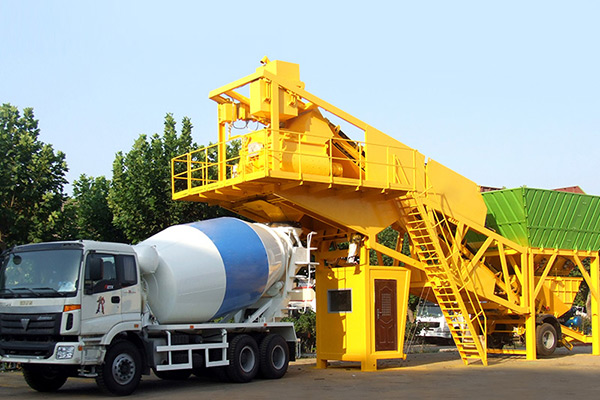

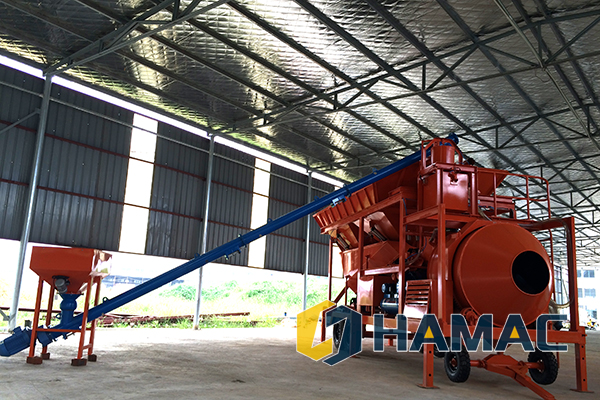

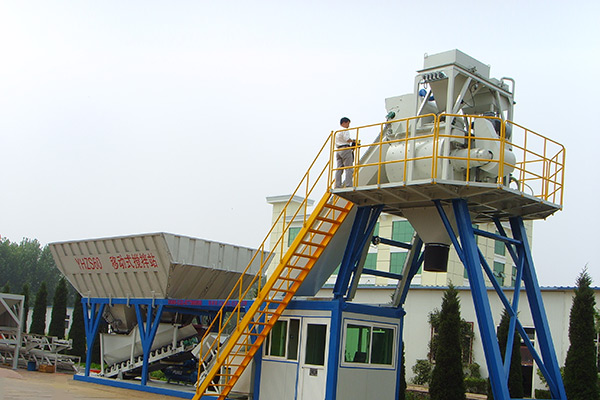

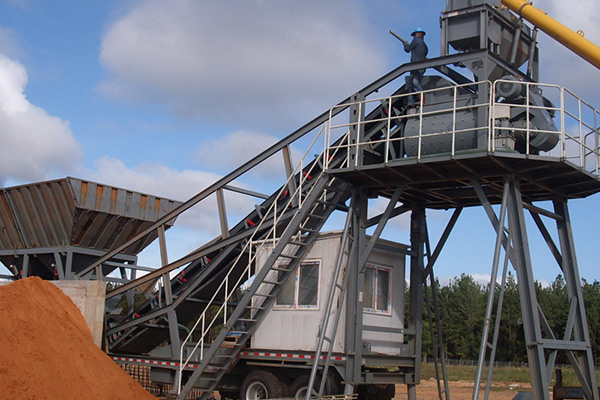

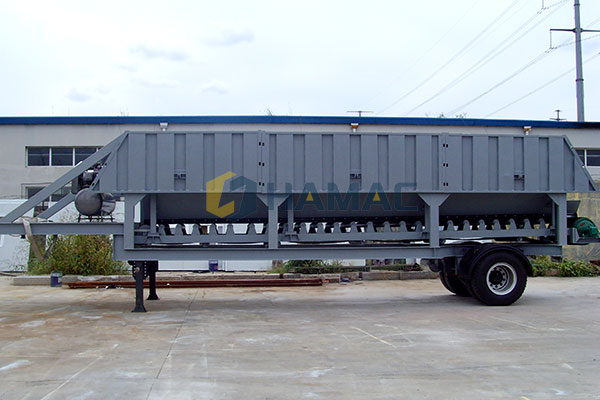

Gallery
Parameters
Parameter Model
YHZM20 YHZS25 YHZS35 YHZS50/60 YHZS75 YHZS100
Theoretical Productivity(m³/h) 20 25 35 50/60 75 100
Mixer JZC500 JS500 JS750 JS1000 JS1500 JS2000
Batching System PLD800 PLD800 PLD1200 PLD1600 PLD2400 PLD3200
Discharging Height(mm) 1200 4000 4000 4000 4000 4000
The max. diameter of the aggregates (mm) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80)
Transportation dimension（L*W*H）mm 7700*2350*3900 13105*3020*4398 15282*3070**4280 16241*3485*4167 16711*3485*4314 18572*2500*4400
The Speed km/h 10 15 15 15 15 15
Turning Radius (m) 10 10 10 10 10 10

Note: Our products are being updated constantly, all rights reserved by HAMAC.
