Skip hoist type Concrete Batching Plant
  • Type :
    Concrete Batching Plant
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. Skip hopper feeding system, cost effective. It will occupy small area than the belt conveyor type;

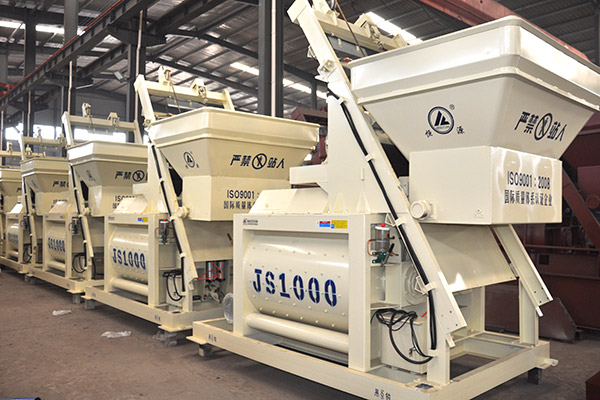

2. Adopt twin horizontal shaft forced type concrete mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

Tags: cement mixing plant ready mix concrete plant concrete equipment for sale concrete pump manufacturers in Librevilleconcrete pump salesschwinn concrete pump in AsmaraBoom Placer Buy Discount

Gallery
Parameters
Type HZS25 HZS35 HZS50 HZS75
Theoretical production capacity(m³/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(Pebble/Macadam)(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m³) 2/3×3.2 2/3/4×7.3 2/3/4×8.3 2/3/4×12
Weighing Accuracy Aggregate (KG) 1500Kg ±2% 2200Kg ±2% 3000Kg ±2% 4500Kg ±2%
Cement(KG) 300Kg ±1% 450Kg ±1% 600Kg ±1% 1500Kg ±1%
Fly ash(KG)     400Kg ±1% 600Kg ±1%
Water (KG) 200Kg ±1% 200Kg ±1% 400Kg ±1% 600Kg ±1%
Additive(KG)   30Kg ±1% 50Kg ±1% 50Kg ±1%
Discharging height(M) 3.8 m 3.8 m 3.8 m 4.1m
Gross weight(T) 10 15 40 50

Note: Note: Our products are being updated constantly, all rights reserved by HAMAC.
